SEPARATOR SHIMS

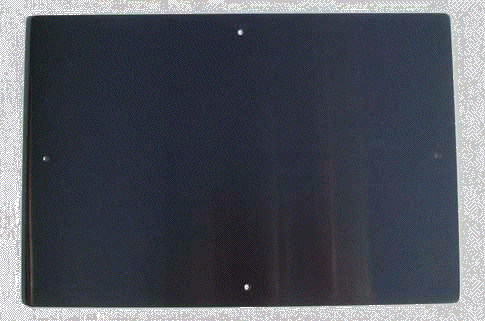

SS separator


blue bar

Annodized Aluminum Separators

Hard Coat Anodized For Adara Press Application
Material 6061-T6 Aluminum
Thickness Per customer requirements (.060 typical)
Flatness Within 3/32"


Stainless Steel Separators

Hardened

Precipitation hardened ensures that the plates will remain hard and flat.
Laser cut to ensure accuracy. Tooling pattern to customer print.
Material 630 Stainless
Thickness .060
Hardness Rc 43-45
Finish #4
Flatness .010 per ft.

Economy

Economical material with good service life
Material 304 Stainless
Thickness .060
Hardness Annealed
Finish #4
Flatness Within 3/32"

blue bar

"Skilled In-House Machinists and Operators
for Fixtures and Tooling Since 1986"
