JJA UltraEdge
VACUUM FRAME
REPLACEMENT PARTS
When Ordering replacement Vacuum Frame parts for your JJA UltraEdge, be
sure to provide us with the serial number located on the metal tag on the
side of the frame (normally on the same side as the connectors). This will
aid us in determining specific part requirements accurately. When ordering
Gaskets, be sure to specify XTR or LP Type and provide us with the outside
dimensions of the gasket or frame.
Gaskets
2 Types:

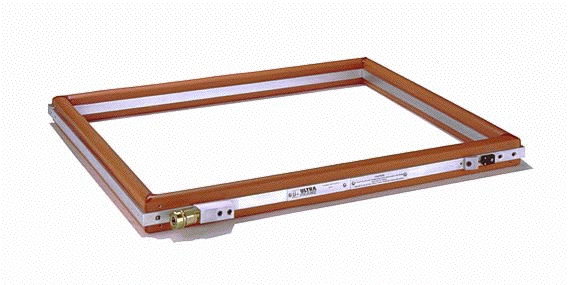

XTR: High Profile -1.5" (pictured above)
LP: Low Profile -1"
Connectors
4 Types:
1) VAF130: Disconnect-Coupler (Female connection
@ base)
2) VAF131: Disconnect-Coupler (Male connection
@ base)
3) VAF132: Connector-Nipple (Female connection
@ base)
4) VAF133: Connector-Nipple (Male connection @
base)
Connector Blocks
Thermocouples
