Lubri~bath

Oil Bath Hub Adapters

from

Fixture Engineering

Never grease pack wheel bearings again!

Convert any trailer hub to an oil bath system.

FEI Lubri~bath hub adapters

• Constantly bathe rotating bearings in lubricant

• Allow you to check fluid level at a glance

• Show the presence of water quickly in the event of a seal leak

• Keep bearings cooler

Scratch resistant Lexan^® lenses show lubricant level at all

times.

Lexan® is a registered trademark of GE Plastics.

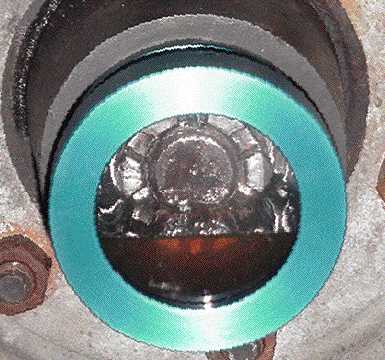

Uncontaminated

Water in the hub is easily seen.

No need to disassemble the hub to check for contamination.

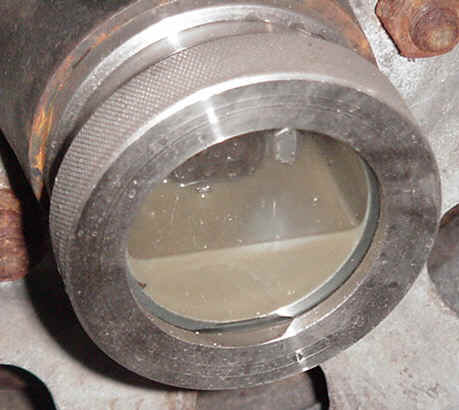

Contaminated

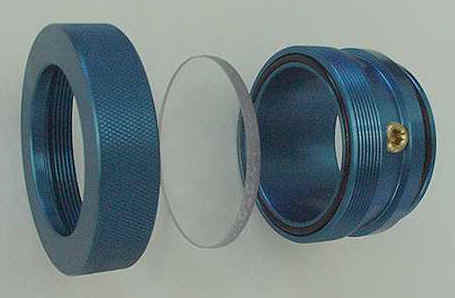

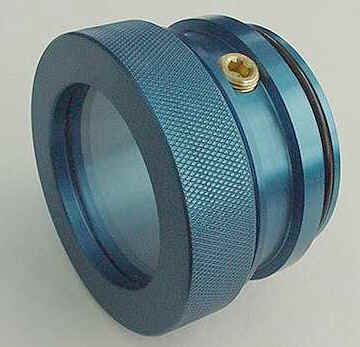

CNC machined from billet aluminum for durability and precision.

Anodized for attractive appearance and long life.

Positive seal at all points. Highest quality materials.

Easily installed without special tools.

No modifications required.

Synthetic lubricant keeps bearings cooler

and extends bearing life.
